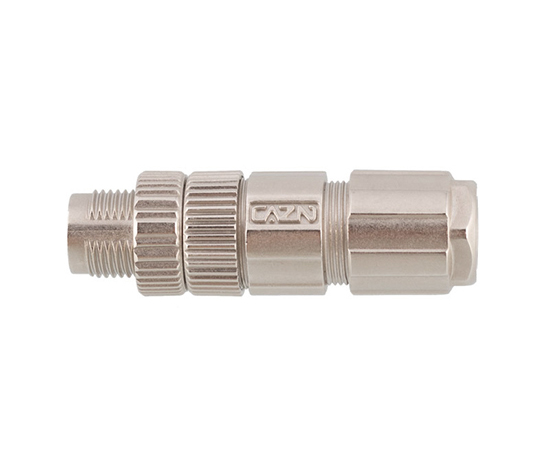

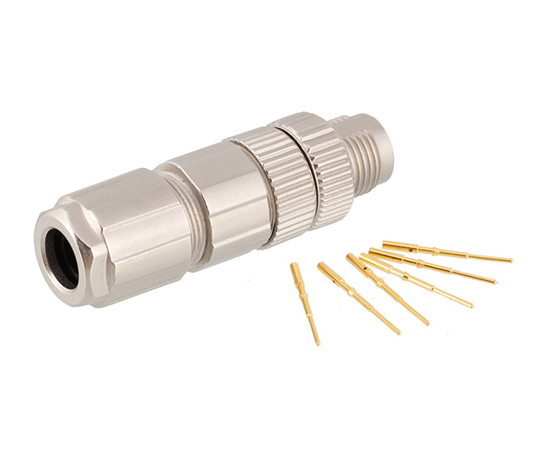

TECHNICAL PARAMETERS
Shell material | Brass nickel plating / Zinc alloy nickel / PA+GF |
Insulator material | PA+GF / TPU |
Sealing material | Epoxy resin / Rubber |
Contact material | Brass / Phosphorus copper gold-plated |
Molding material | TPU / PVC |
Insulation impedance | ≥ 100 MΩ |
Contact impedance | ≤ 5 mΩ |
Durability | ≥ 500 Cycles |
Applicable temperature | -25℃ ~ +80℃ |
Waterproof | IP65 / IP67 |
Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETERS
Product name | Pins | Outlet size-PG7 | 3D Download | 2D Download |
M12 Straight Male metal assembled plug (solder) | 2A | M12-P2A-GWAP7 | ↓ | |
M12 Straight Male metal assembled plug (solder) | 3A | M12-P3A-GWAP7 | ↓ | |
M12 Straight Male metal assembled plug (solder) | 4A | M12-P4A-GWAP7 | ↓ | |
M12 Straight Male metal assembled plug (solder) | 4D | M12-P4D-GWAP7 | ↓ | |
M12 Straight Male metal assembled plug (solder) | 5A | M12-P5A-GWAP7 | ↓ | |
M12 Straight Male metal assembled plug (solder) | 5B | M12-P5B-GWAP7 | ↓ | |
M12 Straight Male metal assembled plug (solder) | 6A | M12-P6A-GWAP7 | ↓ | |
M12 Straight Male metal assembled plug (solder) | 8A | M12-P8A-GWAP7 | ↓ | |
M12 Straight Male metal assembled plug (solder) | 12A | M12-P12A-GWAP7 | ↓ | |
| M12 Straight Male metal assembled plug (solder) | 17A | M12-P17A-GWAP7 | ↓ |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

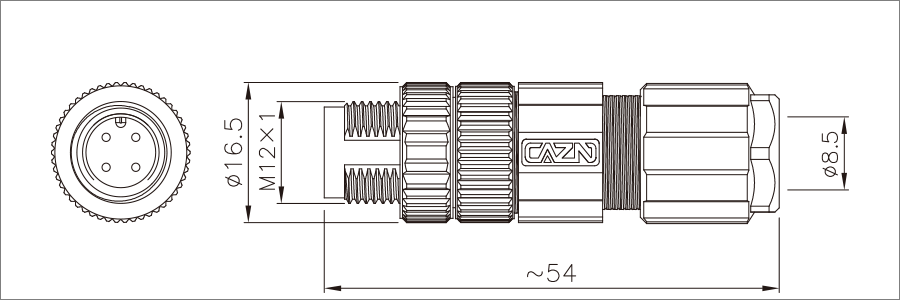

DIMENSION
WIRING DEFINITION
