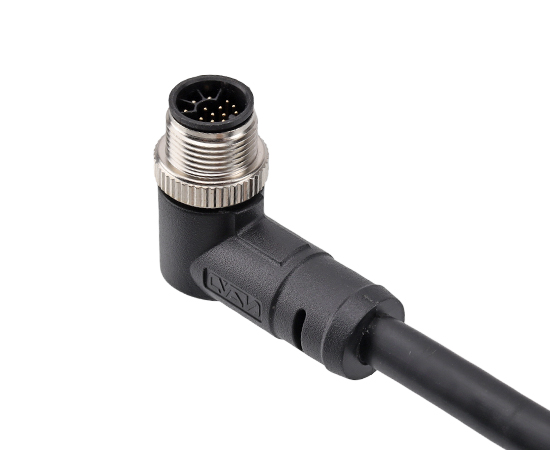

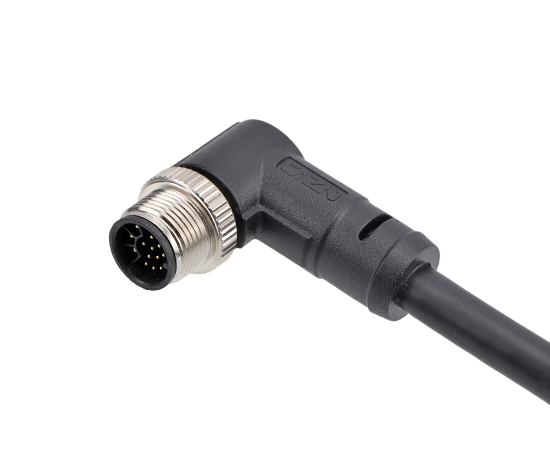

M14 Angled Male Overmolded Plug
Technical Parameter
Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
Insulator material | PA66 |
Sealing material | Epoxy resin/Rubber |
Contact material | Brass /Phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 m Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IPC-A-620 |
Electrical parameter
Product name | Product number | 3D Download | 2D Download |
M14 angled male overmolded plug 18 pin PVC | M14-P18-MWD-xxPV | ||
M14 angled female overmolded plug 18 pin PU | M14-P18-MWD-xxPU | ||
M14 angled female overmolded plug 18 pin TF | M14-P18-MWD-xxTF | ||
M14 angled female overmolded plug 18 pin PE | M14-P18-MWD-xxPE |
| Product Catalog | CAZN-M-SERIE-CONNECTOR |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
