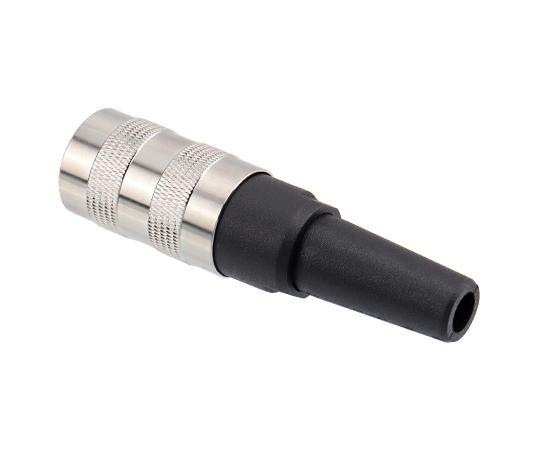

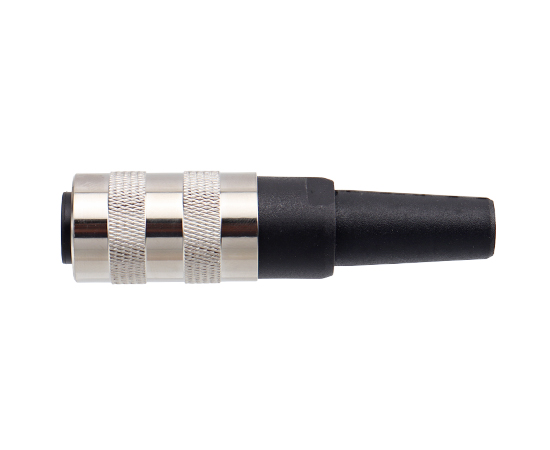

M16 Straight Female Assembled Plug (Solder, Plastic tube)
MECHANICAL PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | PG7:4~6mm; PG9:6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Implementation standards： | IEC 61076-2-106-2012 |

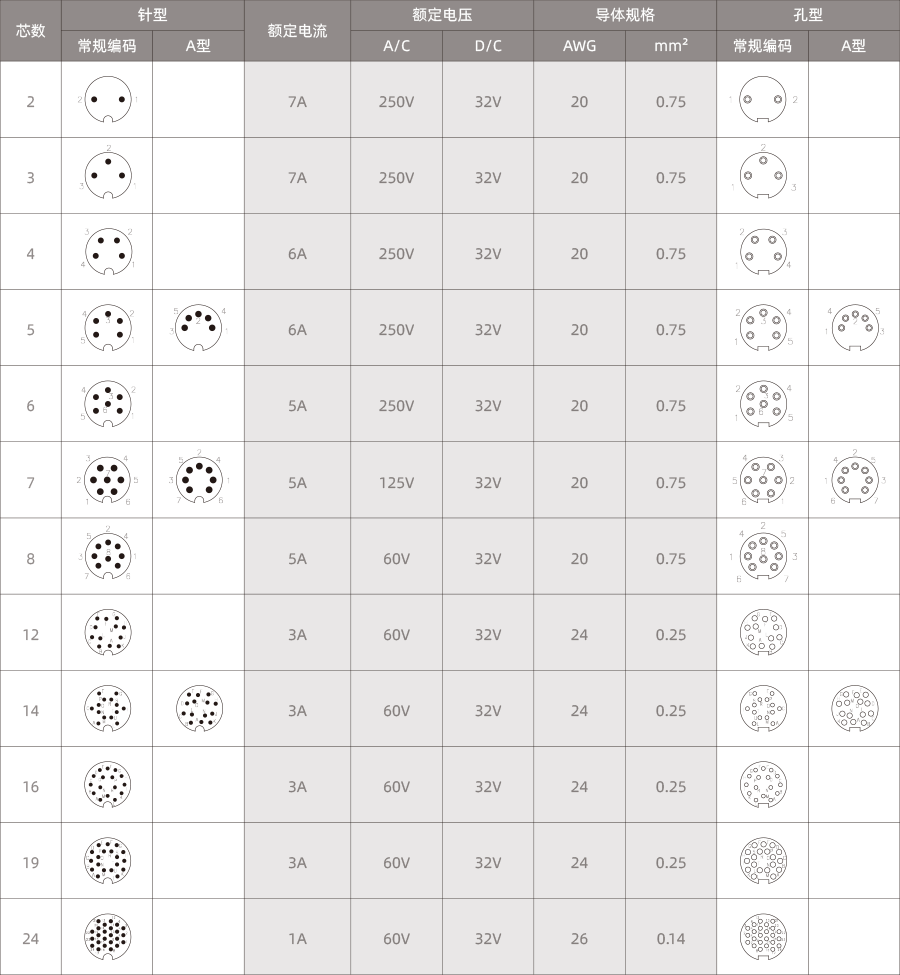

Electrical parameters
| Product name | Outlet size-PG7 | Outlet size-PG9 | Pins | 3D Download | 2D Download |
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-2Pin | M16B-02PAF-GWP7-PT-PL | M16B-02PAF-GWP9-PT-PL | 2 | ↓ | |
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-3Pin | M16B-03PAF-GWP7-PT-PL | M16B-03PAF-GWP9-PT-PL | 3 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-4Pin | M16B-04PAF-GWP7-PT-PL | M16B-04PAF-GWP9-PT-PL | 4 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-5Pin | M16B-05PAF-GWP7-PT-PL | M16B-05PAF-GWP9-PT-PL | 5 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-6Pin | M16B-06PAF-GWP7-PT-PL | M16B-06PAF-GWP9-PT-PL | 6 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-7Pin | M16B-07PAF-GWP7-PT-PL | M16B-07PAF-GWP9-PT-PL | 7 | ↓ | |
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-8Pin | M16B-08PAF-GWP7-PT-PL | M16B-08PAF-GWP9-PT-PL | 8 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-12Pin | M16B-12PAF-GWP7-PT-PL | M16B-12PAF-GWP9-PT-PL | 12 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-14Pin | M16B-14PAF-GWP7-PT-PL | M16B-14PAF-GWP9-PT-PL | 14 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-16Pin | M16B-16PAF-GWP7-PT-PL | M16B-16PAF-GWP9-PT-PL | 16 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-19Pin | M16B-19PAF-GWP7-PT-PL | M16B-19PAF-GWP9-PT-PL | 19 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-24Pin | M16B-19PAF-GWP7-PT-PL | M16B-24PAF-GWP9-PT-PL | 24 | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-5Pin-A | M16A-05PAF-GWP7-PT-PL | M16A-05PAF-GWP9-PT-PL | 5A | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-7Pin-A | M16A-07PAF-GWP7-PT-PL | M16A-07PAF-GWP9-PT-PL | 7A | ||
| M16 Straight Female Metal Assembled Plug (Solder, Plastic tube)-14Pin-A | M16A-14PAF-GWP7-PT-PL | M16A-14PAF-GWP9-PT-PL | 14A |
| Product Catalog | CAZN-M-SERIE-CONNECTOR |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DATASHEET
