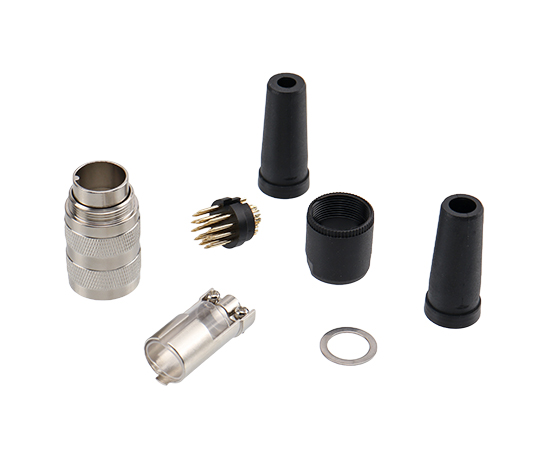

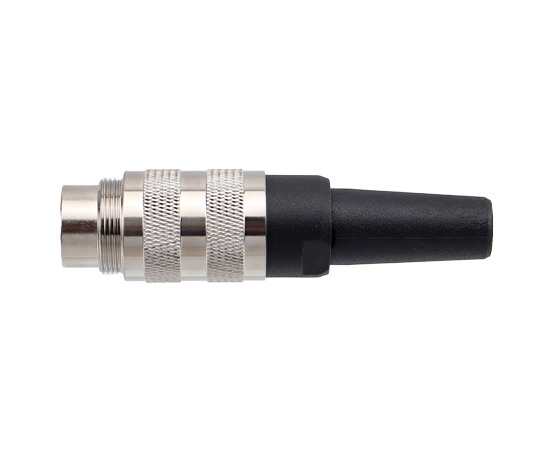

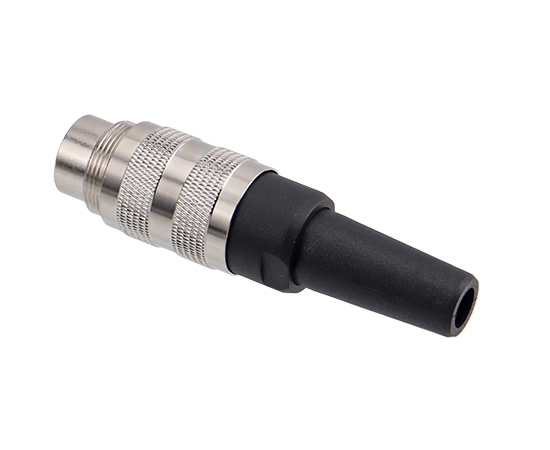

M16 Straight Male Assembled Plug (Solder, Plastic tube)

European standard connector M16 series,

Structure type: Straight Metal Assembled Plug

Pin type: Male

Contacts number: 2,3,4,5,6,7,8,12,14,16,19,24 pins

Connection method: Solder

Shield: Yes

Certification: CE RoHS

Standard：IEC 61076-2-106-2012 AISG

PDF Download

Shopping

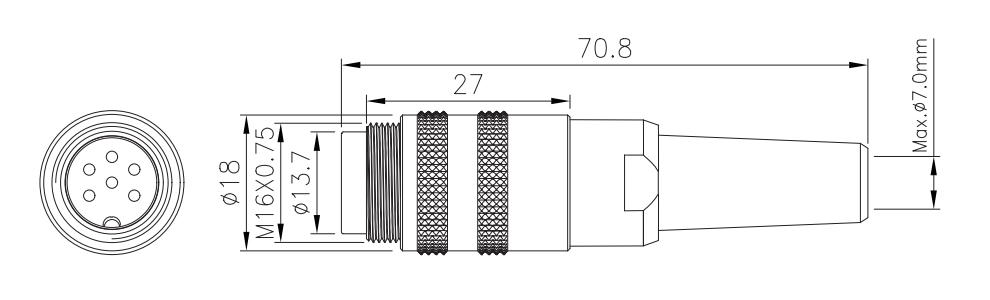

MECHANICAL PARAMETERS

Shell material：	Brass/Zinc alloy nickel/Brass nickel plated
Insulator material：	PA66
Sealing material：	Epoxy resin/Rubber
Contact material：	Brass/Phosphorus copper gold-plated
Molding material：	TPU/PVC
Wiring range：	PG7:4~6mm; PG9:6~8mm
Contact impedance：	≤5 mΩ
Durability：	≥500 Cycles
Applicable temperature：	-25℃ ~ +80℃
Waterproof grade：	IP65/IP67
Implementation standards：	IEC 61076-2-106-2012

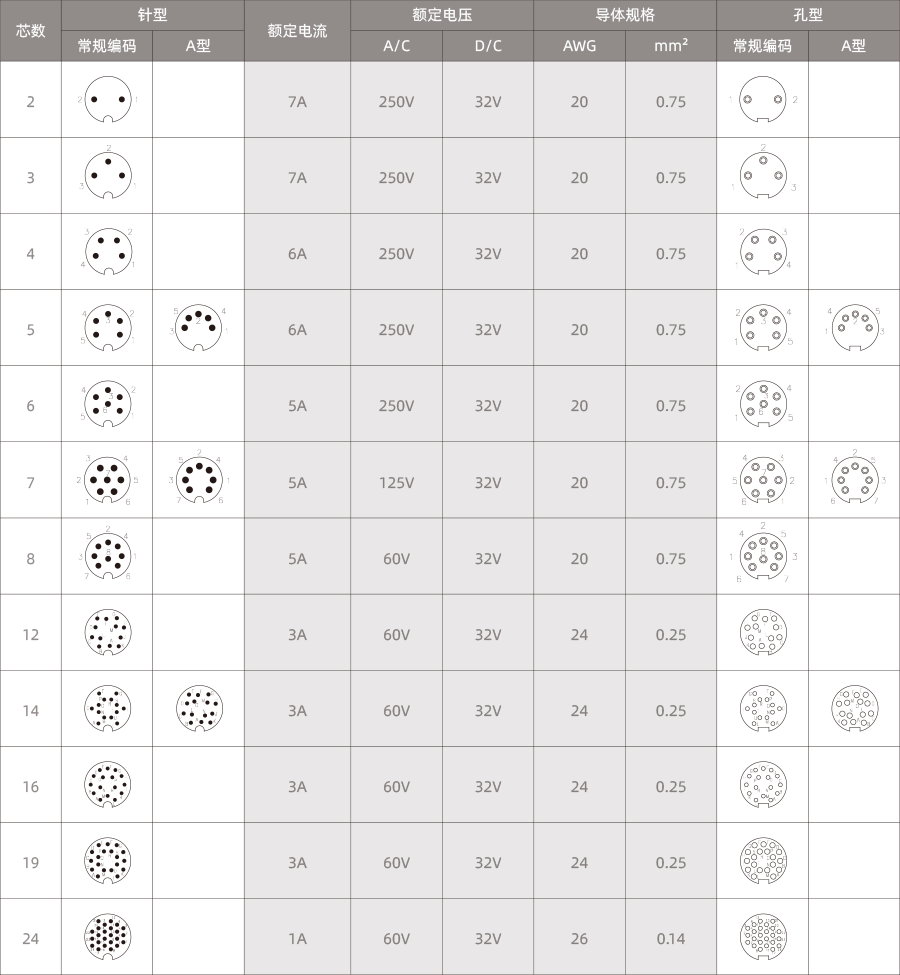

Electrical parameters


Product name	Outlet size-PG7	Outlet size-PG9	Pins	3D Download	2D Download
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-2Pin	M16-P2-PWA 5.0-PT	M16-P2-PWA 6.5-PT	2		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-3Pin	M16-P3-PWA 5.0-PT	M16-P3-PWA 6.5-PT	3		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-4Pin	M16-P4-PWA 5.0-PT	M16-P4-PWA 6.5-PT	4		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-5Pin	M16-P5-PWA 5.0-PT	M16-P5-PWA 6.5-PT	5		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-6Pin	M16-P6-PWA 5.0-PT	M16-P6-PWA 6.5-PT	6		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-7Pin	M16-P7-PWA 5.0-PT	M16-P7-PWA 6.5-PT	7		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-8Pin	M16-P8-PWA 5.0-PT	M16-P8-PWA 6.5-PT	8		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-12Pin	M16-P12-PWA 5.0-PT	M16-P12-PWA 6.5-PT	12		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-14Pin	M16-P14-PWA 5.0-PT	M16-P14-PWA 6.5-PT	14		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-16Pin	M16-P16-PWA 5.0-PT	M16-P16-PWA 6.5-PT	16		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-19Pin	M16-P19-PWA 5.0-PT	M16-P19-PWA 6.5-PT	19		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-24Pin	M16-P24-PWA 5.0-PT	M16-P24-PWA 6.5-PT	24		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-5Pin-A	M16-P5A-PWA 5.0-PT	M16-P5A-PWA 6.5-PT	5A		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-7Pin-A	M16-P7A-PWA 5.0-PT	M16-P7A-PWA 6.5-PT	7A		↓
M16 Straight Male Metal Assembled Plug (Solder, Plastic tube)-14Pin-A	M16-P14A-PWA 5.0-PT	M16-P14A-PWA 6.5-PT	14A		↓
