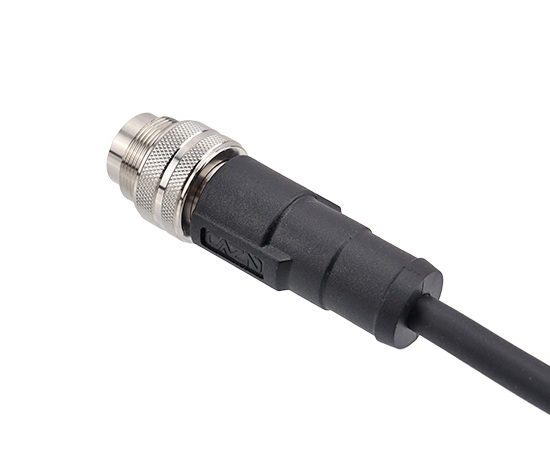

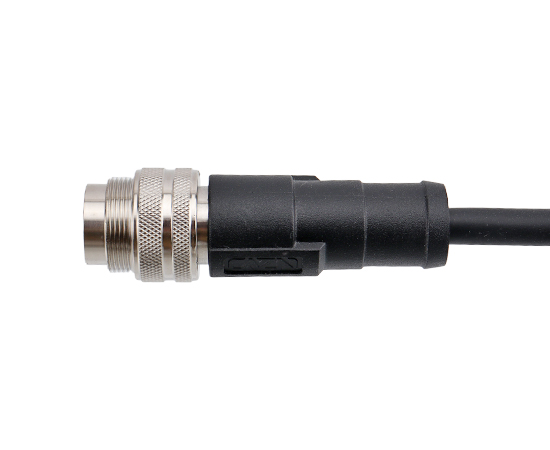

M16 Straight Male Overmolded Plug
MECHANICAL PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | PG7:4~6mm; PG9:6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
M16 ELECTRICAL PARAMETERS
| Product name | Model(Shielded) | Model(Unshielded) | Pins | 3D Download | 2D Download |
| M16 Straight Male Overmolded Plug-2Pins-xxM-PVC | M16B-02PAM-GM-xVS | M16B-02PAM-GM-xV | 2 | Shielded/Unshielded | |
| M16 Straight Male Overmolded Plug-3Pins-xxM-PVC | M16B-03PAM-GM-xVS | M16B-03PAM-GM-xV | 3 | ||
| M16 Straight Male Overmolded Plug-4Pins-xxM-PVC | M16B-04PAM-GM-xVS | M16B-04PAM-GM-xV | 4 | ||
| M16 Straight Male Overmolded Plug-5Pins-xxM-PVC | M16B-05PAM-GM-xVS | M16B-05PAM-GM-xV | 5 | ||
| M16 Straight Male Overmolded Plug-6Pins-xxM-PVC | M16B-06PAM-GM-xVS | M16B-06PAM-GM-xV | 6 | ||
| M16 Straight Male Overmolded Plug-7Pins-xxM-PVC | M16B-07PAM-GM-xVS | M16B-07PAM-GM-xV | 7 | ||
| M16 Straight Male Overmolded Plug-8Pins-xxM-PVC | M16B-08PAM-GM-xVS | M16B-08PAM-GM-xV | 8 | ||
| M16 Straight Male Overmolded Plug-12Pins-xxM-PVC | M16B-12PAM-GM-xVS | M16B-12PAM-GM-xV | 12 | ||
| M16 Straight Male Overmolded Plug-14Pins-xxM-PVC | M16B-14PAM-GM-xVS | M16B-14PAM-GM-xV | 14 | ||
| M16 Straight Male Overmolded Plug-16Pins-xxM-PVC | M16B-16PAM-GM-xVS | M16B-16PAM-GM-xV | 16 | ||
| M16 Straight Male Overmolded Plug-19Pins-xxM-PVC | M16B-19PAM-GM-xVS | M16B-19PAM-GM-xV | 19 | ||
| M16 Straight Male Overmolded Plug-24Pins-xxM-PVC | M16B-24PAM-GM-xVS | M16B-24PAM-GM-xV | 24 | ||
| M16 Straight Male Overmolded Plug-5APins-xxM-PVC | M16A-05PAM-GM-xVS | M16A-05PAM-GM-xV | 5A | ||
| M16 Straight Male Overmolded Plug-7APins-xxM-PVC | M16A-07PAM-GM-xVS | M16A-07PAM-GM-xV | 7A | ||
| M16 Straight Male Overmolded Plug-14APins-xxM-PVC | M16A-14PAM-GM-xVS | M16A-14PAM-GM-xV | 14A |
*If you need to choose other wire, please consult customer service
