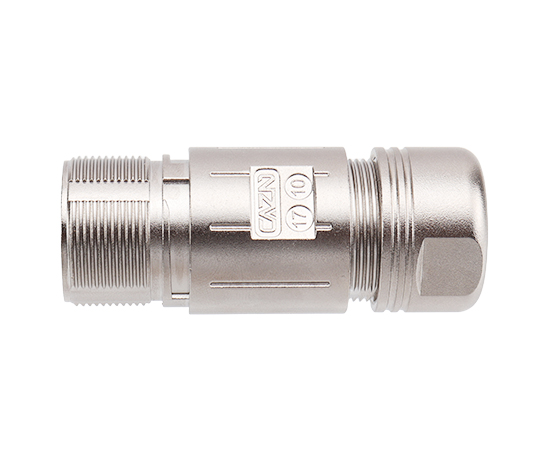

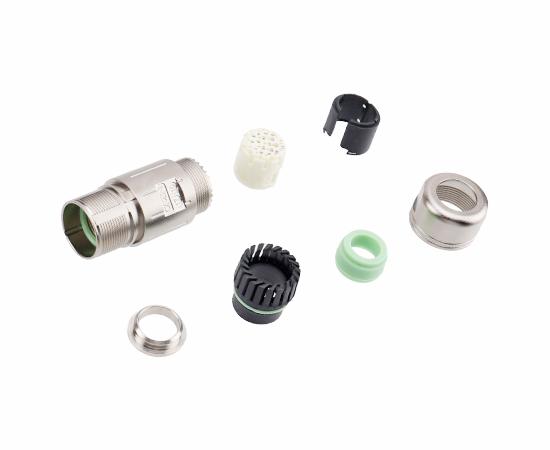

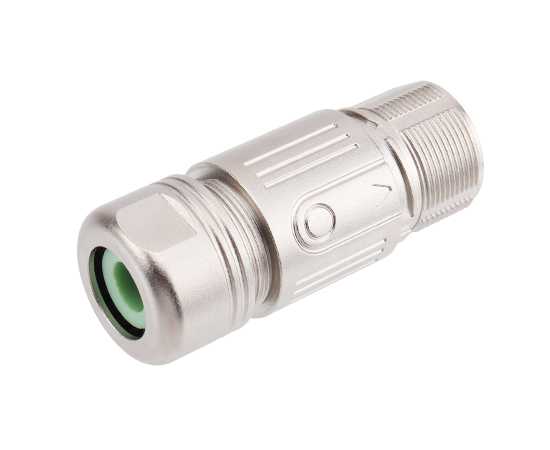

M623 Signal Straight Mating Female Metal Assembled Plug ( Crimp )
MECHANICAL PARAMETERS
| Shell material： | Brass nickel-plated |
| Insulator material： | PBT/PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | 6~10mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +125℃ |
| Waterproof grade： | IP67 |
M623 SIGNAL TYPE ELECTRICAL PARAMETERS
| Product Name | Part No.-(P Code) | Part No.-(E Code) | Pins | 3D Download | 2D Download |
| M623 Signal Straight Mating Female Assembled Plug-Crimp-6Pin | M623-S6P-GCK 14.5 | M623-S6E-GCK 14.5 | 6 |
|
|
| M623 Signal Straight Mating Female Assembled Plug-Crimp-7Pin | M623-S7P-GCK 14.5 | M623-S7E-GCK 14.5 | 7 |
|
|
| M623 Signal Straight Mating Female Assembled Plug-Crimp-9Pin | M623-S9P-GCK 14.5 | M623-S9E-GCK 14.5 | 9 |
|
|
| M623 Signal Straight Mating Female Assembled Plug-Crimp-8+1Pin | M623-S9PP-GCK 14.5 | M623-S9PE-GCK 14.5 | 8+1 |
|
|
| M623 Signal Straight Mating Female Assembled Plug-Crimp-12Pin | M623-S12P-GCK 14.5 | M623-S12E-GCK 14.5 | 12 |
|
|
| M623 Signal Straight Mating Female Assembled Plug-Crimp-17Pin | M623-S17P-GCK 14.5 | M623-S17E-GCK 14.5 | 17 |
|
|
| Product catalog | CAZN-M Series products brochure |
| Certification/Report | EMC Certificate |
| RoHS Report | 查看 View |
| Waterproof test report | 查看 View |
DATASHEET
M623 WIRE DEFINITION
