M623·Signal Riveting pressure pin φ2
MECHANICAL PARAMETERS
| Shell material： | Brass nickel-plated |
| Insulator material： | PBT/PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | 6~10mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +125℃ |
| Waterproof grade： | IP67 |

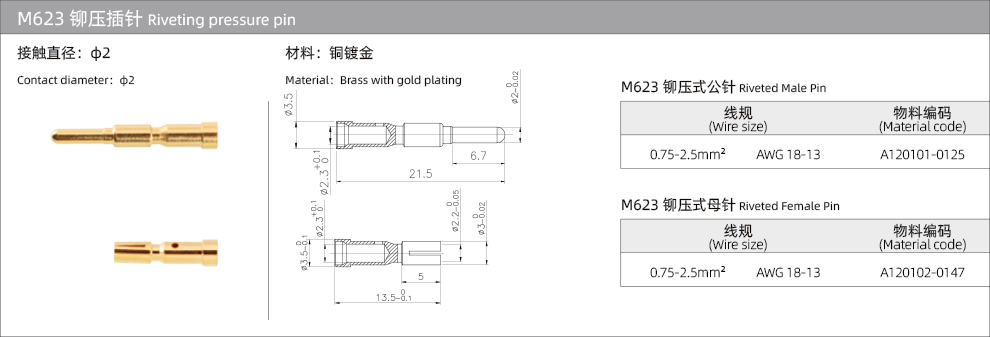

M623 SIGNAL CONTACT PINS PARAMETER TABLE
Product Name | Part No. | Wire Size | 3D Download | 2D Download |

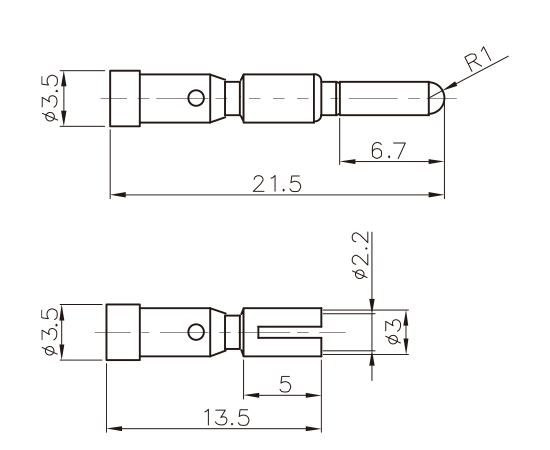

M623 Riveted Male Pin 2mm | A120101-0125 | 0.75-2.5mm² AWG18-13 | ||
M623 Riveted Female Pin 2mm | A120102-0147 | 0.75-2.5mm² AWG18-13 |
