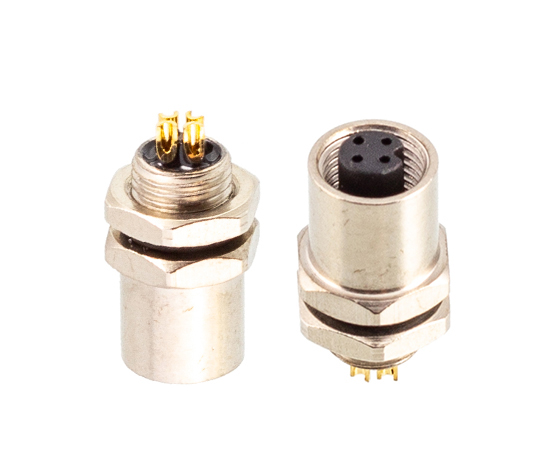

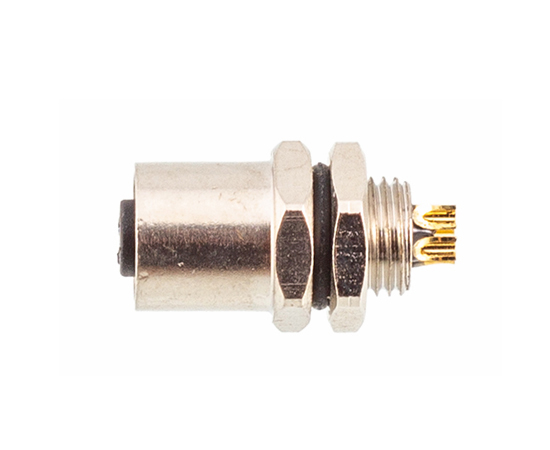

M5 Female Front Mount Socket (Solder)
M5 MECHANICAL PARAMETERS
| Shell material: | Brass nickel plated |
| Insulator material: | PA66/TPU |
| Sealing material: | Epoxy resin/Rubber |
| Contact material: | Phosphorus copper gold-plated/Brass copper gold-plated |
| Molding material: | PUR/PVC |
| Insulation impedance: | ≥100 MΩ |
| Contact impedance: | ≤5 mΩ |
| Durability: | ≥500(Cycles) |
| Applicable temperature: | -25℃ ~ +80℃ |
| Waterproof grade: | IP65/IP67 |
| Execution standard: | IEC 61076-2-105 |
M5 ELECTRICAL PARAMETERS
| Product Name | Part No. | Pins | 3D Download | 2D Download |
| M5 Female Front Mount Socket ( Solder ) | M5-S3-GWB M5 | 3 | ||
| M5 Female Front Mount Socket ( Solder ) | M5-S4-GWB M5 | 4 |
*If needing single wires please contact our sales.
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
