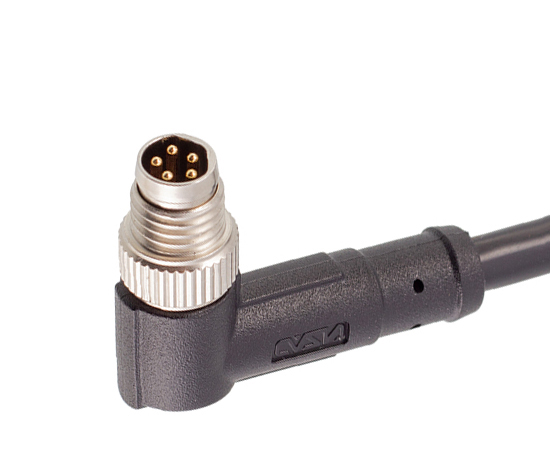

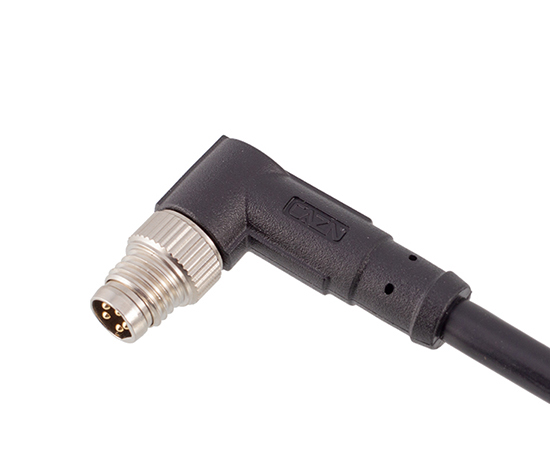

M8 Angled Male Overmolded Plug (Metal interface)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Executive standard： | IEC 61076-2-104 |

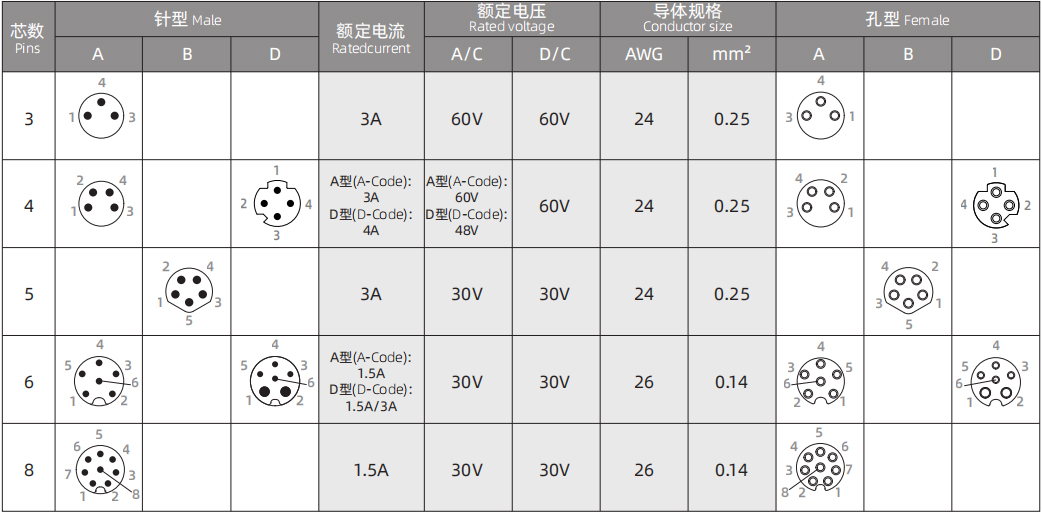

ELECTRICAL PARAMETERS
| Product Name | Part No.-Shielded | Part No.-Unshielded | Pins | 3D Download | 2D Download |
| M8 Angled Male Overmolded Plug(Metal interface)-3A Pin-xxMeters-PVC jacket | M8-P3A-MWD-1PV-S-GK | M8-P3A-MWD-1PV-GK | 3A | ||
| M8 Angled Male Overmolded Plug(Metal interface)-4A Pin-xxMeters-PVC jacket | M8-P4A-MWD-1PV-S-GK | M8-P4A-MWD-1PV-GK | 4A | ||
| M8 Angled Male Overmolded Plug(Metal interface)-5B Pin-xxMeters-PVC jacket | M8-P5B-MWD-1PV-S-GK | M8-P5B-MWD-1PV-GK | 5B |
*If need to choose other wires, please consult customer service
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |

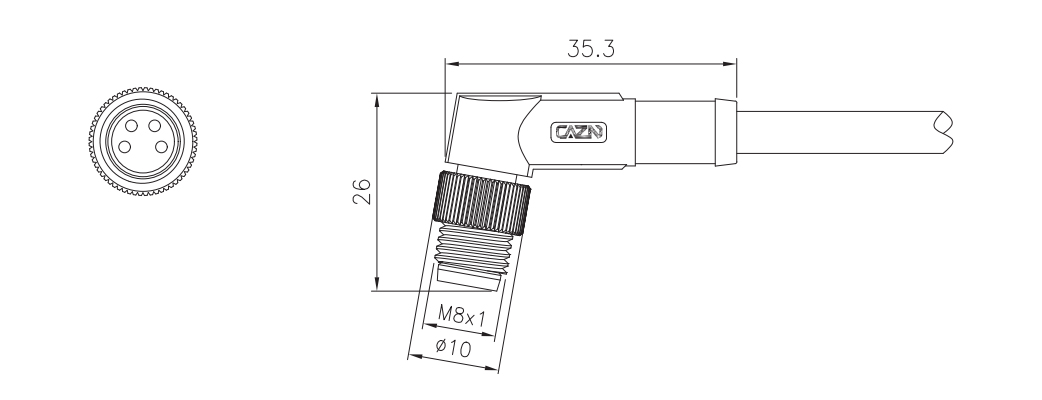

DATASHEET

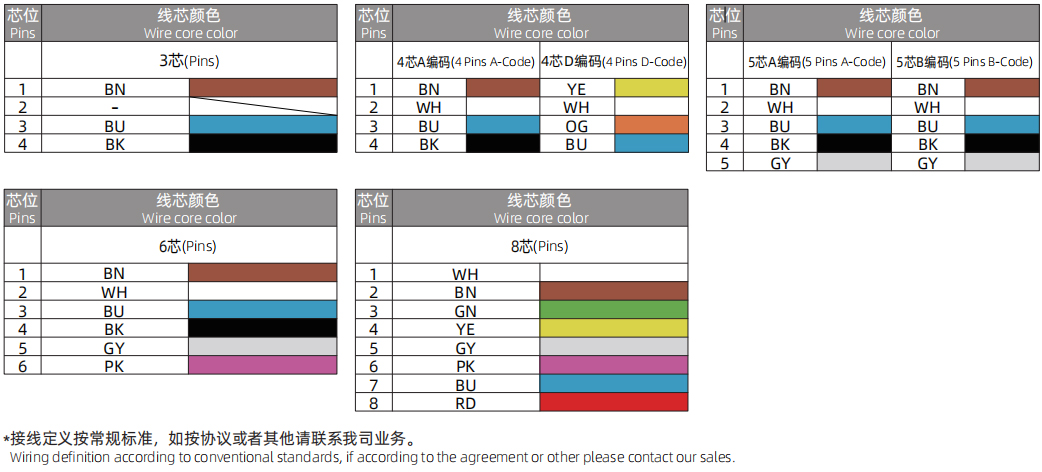

WIRE DEFINITION
