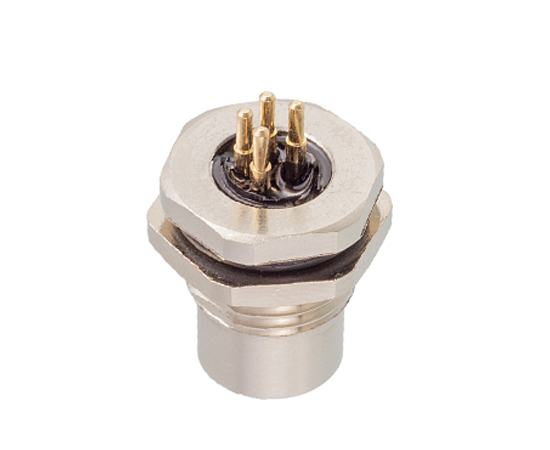

M8 Female Back Mount Socket (PCB, Screw M11*1)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Executive standard： | IEC 61076-2-104 |

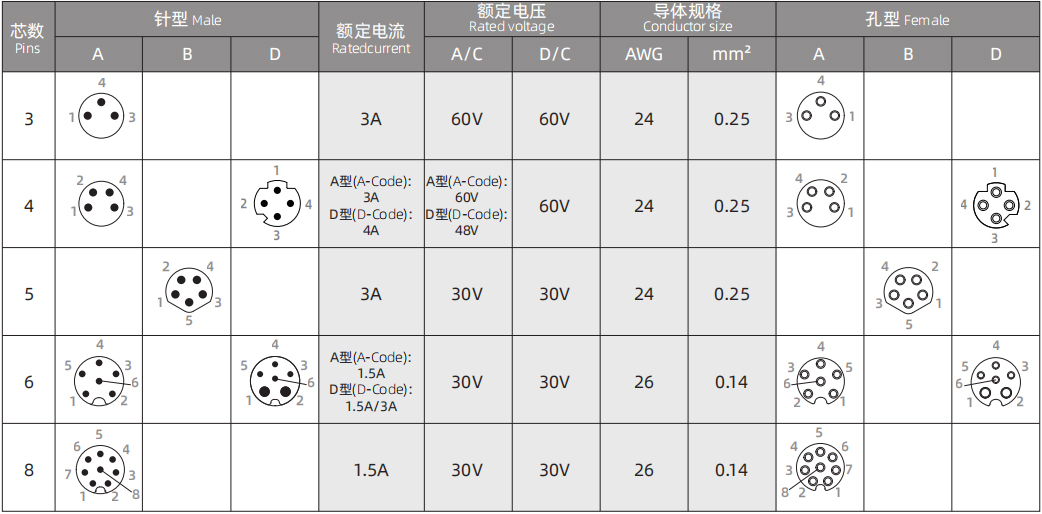

ELECTRICAL PARAMETERS
Product Name | Screw | Structure | Pins | Product No. | 3D Download | 2D Download |
M8 Female Back Mount Socket-3A Pin | M11x1 | PCB | 3A | M8-S3A-GPF M11 | ||
M8 Female Back Mount Socket-4A Pin | M11x1 | PCB | 4A | M8-S4A-GPF M11 | ||
M8 Female Back Mount Socket-4D Pin | M11x1 | PCB | 4D | M8-S4D-GPF M11 | ||
M8 Female Back Mount Socket-5B Pin | M11x1 | PCB | 5B | M8-S5B-GPF M11 | ||
M8 Female Back Mount Socket-6A Pin | M11x1 | PCB | 6A | M8-S6A-GPF M11 | ||
M8 Female Back Mount Socket-8A Pin | M11x1 | PCB | 8A | M8-S8A-GPF M11 |
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |

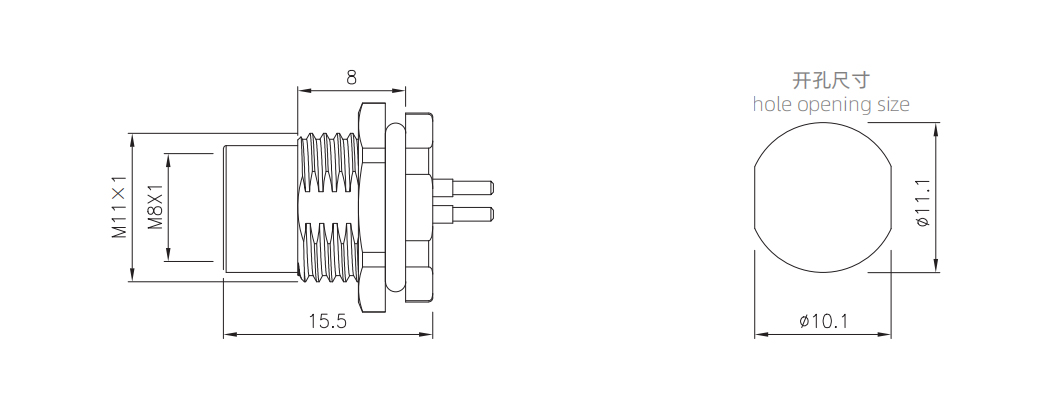

DATASHEET

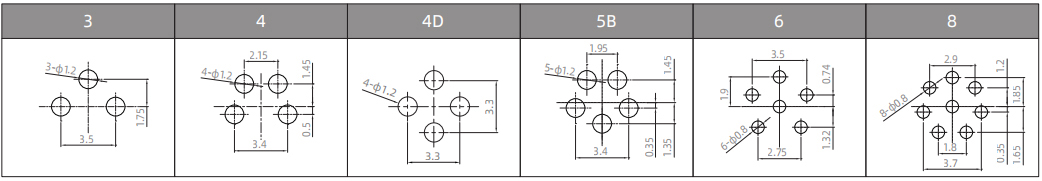

PCB PINS ARRANGEMENT
