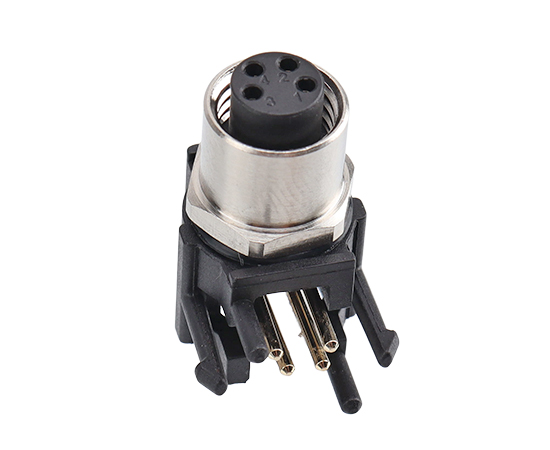

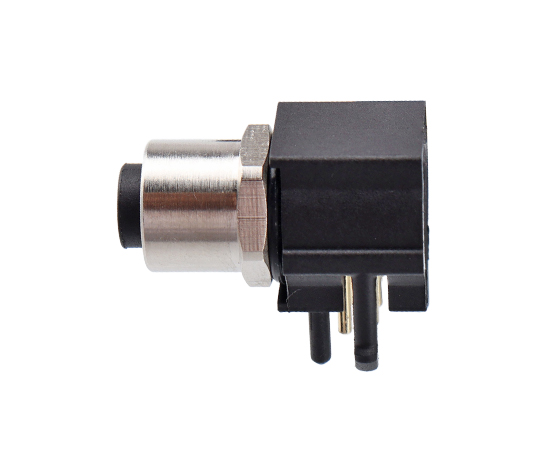

M8 Angled Female Back Mount Plastic Socket (PCB, Screw M8*1, Plastic)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Phosphorus copper gold-plated/Brass copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Execution standard： | IEC 61076-2-104 |
ELECTRICAL PARAMETERS
| Product Name | Screw | Structure | Pins | Product No. | 3D Download | 2D Download |
| M8 Angled Female Back Mount Socket-3A Pin | M8x1 | PCB, Plastic type | 3A | M8 - S 3A - PTL M8 |
|
|
| M8 Angled Female Back Mount Socket-4A Pin | M8x1 | PCB, Plastic type | 4A | M8 - S 4A - PTL M8 |
|
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET

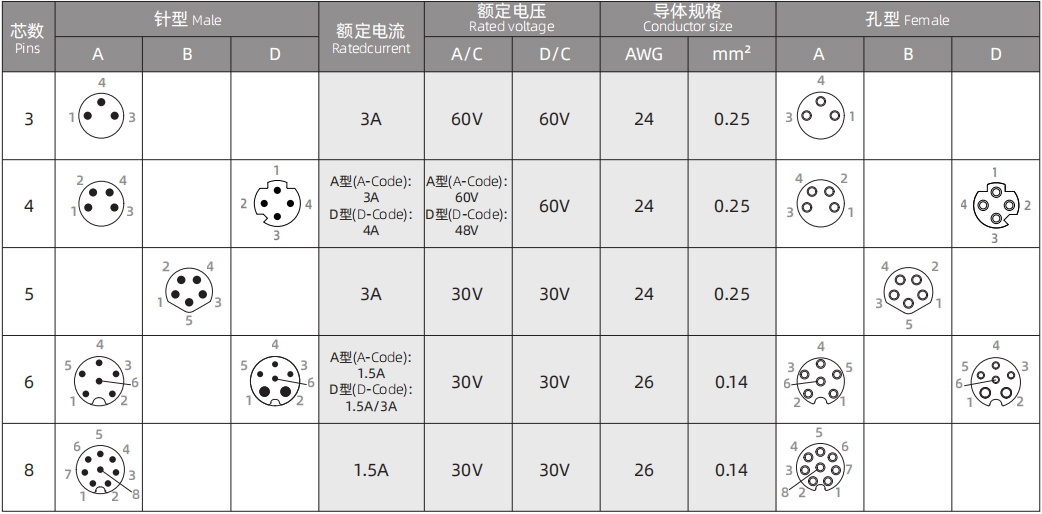

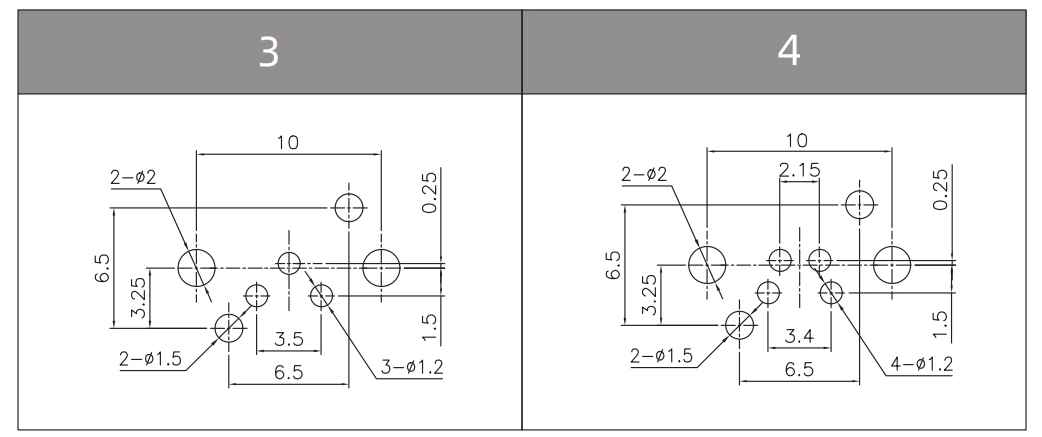

PCB ANGLED PINS ARRANGEMENT(Grounded type)
