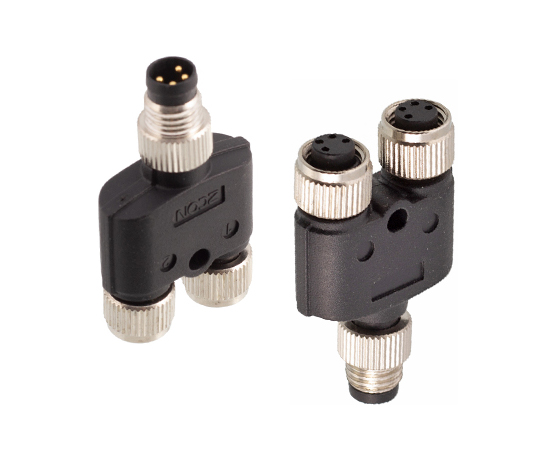

M8 Y Type Adapter (PSS)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Executive standard： | IEC 61076-2-104 |
ELECTRICAL PARAMETERS
| Product Name | Structure | Pins | Product No. | 3D Download | 2D Download |
| M8 Y Type Adapter-3A Pin | PSS Type | 3A | M8A-03PM/M8A-03PFF-Y |
|
|
| M8 Y Type Adapter-4A Pin | PSS Type | 4A | M8A-04PM/M8A-04PFF-Y |
|
|
| M8 Y Type Adapter-5B Pin | PSS Type | 5B | M8A-05BPM/M8A-03PFF-Y |
|
|
| M8 Y Type Adapter-6A Pin | PSS Type | 6A | M8A-06PM/M8A-03PFF-Y |
|
|
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET
WIRE DEFINITION
