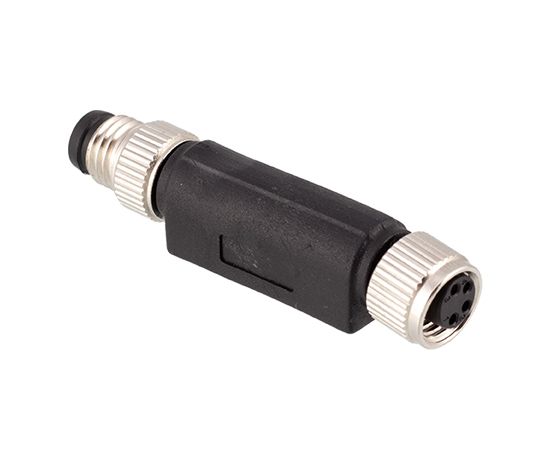

M8 I Type Adapter (PS, Plastic Version)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Executive standard： | IEC 61076-2-104 |

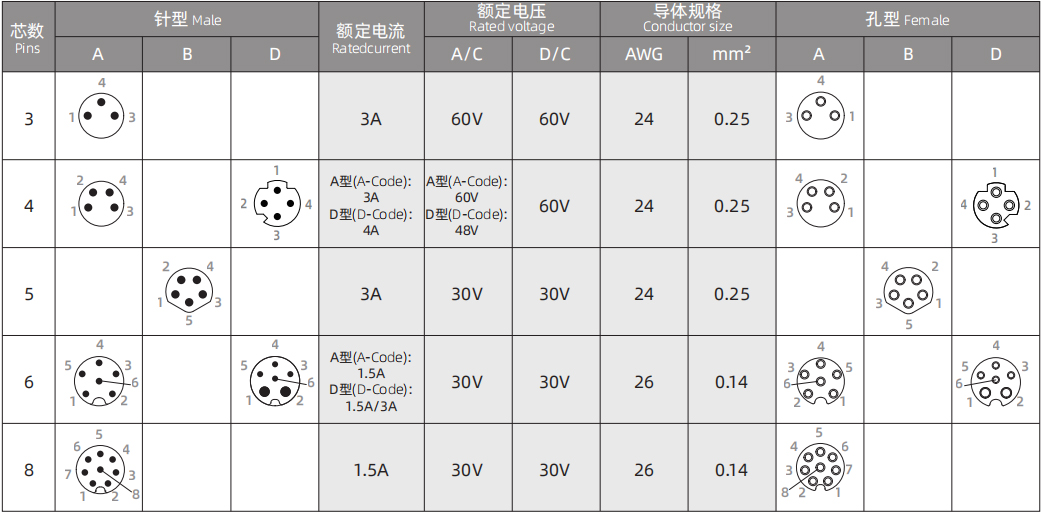

ELECTRICAL PARAMETERS
Product Name | Structure | Pins | Product No. | 3D Download | 2D Download |
M8 I Type Adapter-3A Pin | PS Type, Plastic Version | 3A | M8-P3A-S3A-ISCNY | ||
M8 I Type Adapter-4A Pin | PS Type, Plastic Version | 4A | M8-P4A-S4A-ISCNY | ||
M8 I Type Adapter-5B Pin | PS Type, Plastic Version | 5B | M8-P5B-S5B-ISCNY | ||
M8 I Type Adapter-6A Pin | PS Type, Plastic Version | 6A | M8-P6A-S6A-ISCNY | ||
M8 I Type Adapter-8A Pin | PS Type, Plastic Version | 8A | M8-P8A-S8A-ISCNY |
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |

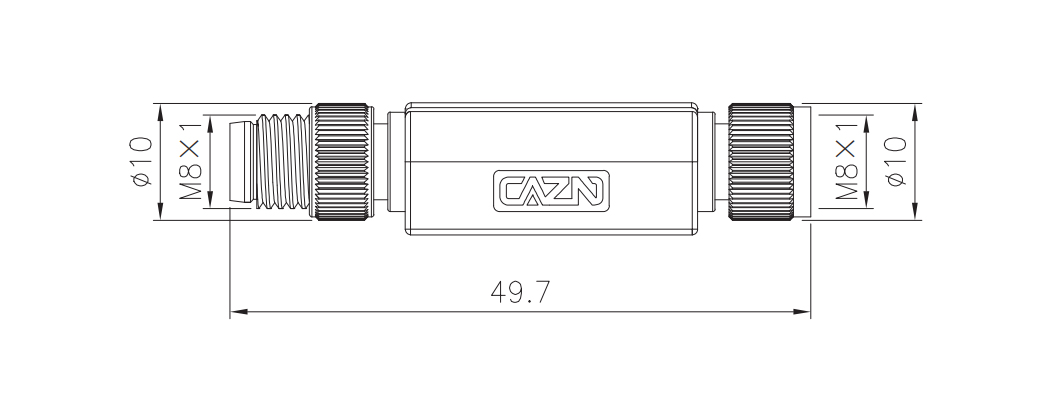

DATASHEET

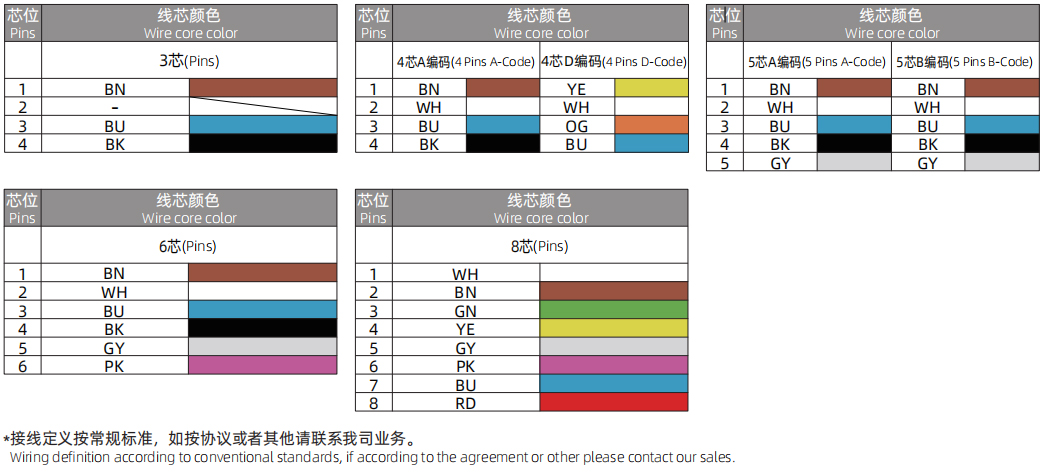

WIRE DEFINITION
