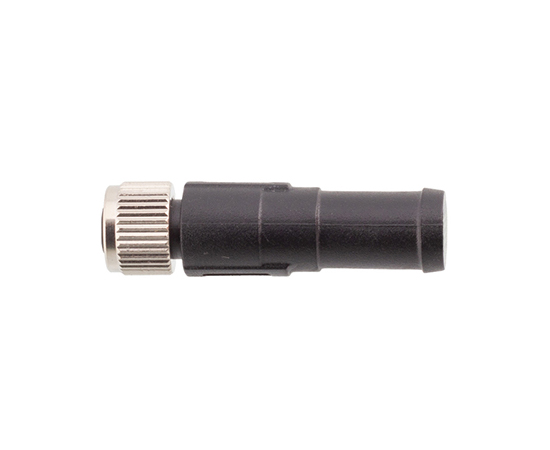

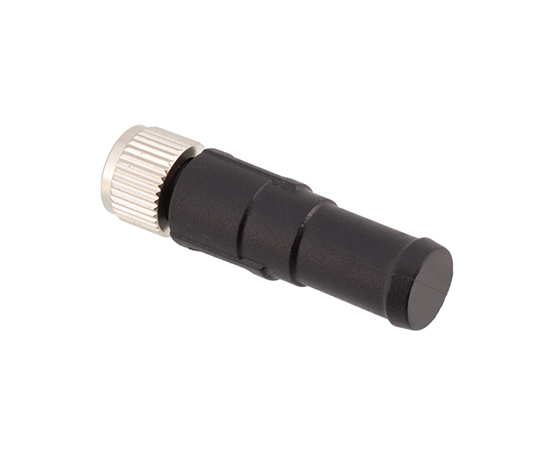

M8 Female Ohm terminal Plug (120Ω)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Executive standard： | IEC 61076-2-104 |
ELECTRICAL PARAMETERS
| Product Name | Part No. | Pins | 3D Download | 2D Download |
| M8 Male Ohm terminal Plug(120Ω)-3A Pin | M8-P3A-MWO-120OHM | 3A | ||
| M8 Male Ohm terminal Plug(120Ω)-4A Pin | M8-P4A-MWO-120OHM | 4A | ||
| M8 Male Ohm terminal Plug(120Ω)-5B Pin | M8-P5B-MWO-120OHM | 5B | ||
| M8 Male Ohm terminal Plug(120Ω)-6A Pin | M8-P6A-MWO-120OHM | 6A | ||
| M8 Male Ohm terminal Plug(120Ω)-8A Pin | M8-P8A-MWO-120OHM | 8A |
*If need to choose other wires, please consult customer service.
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET

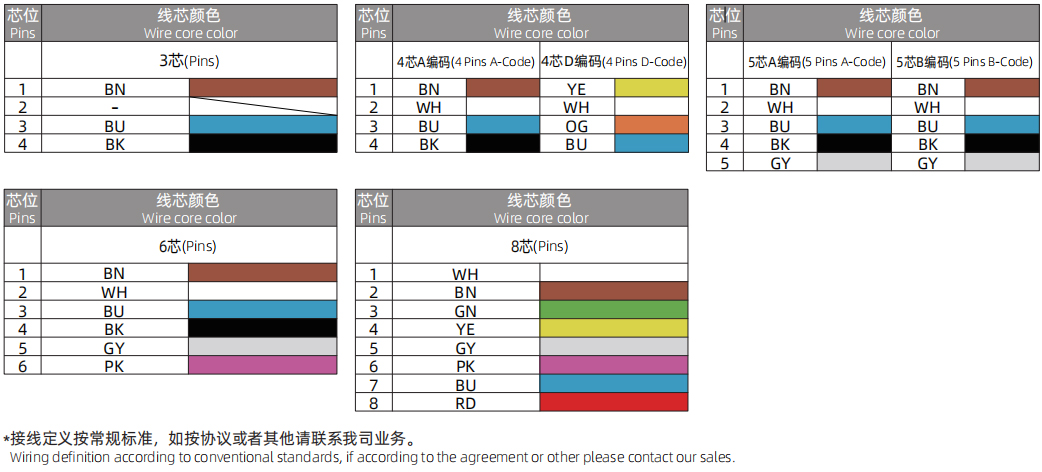

WIRE DEFINITION
