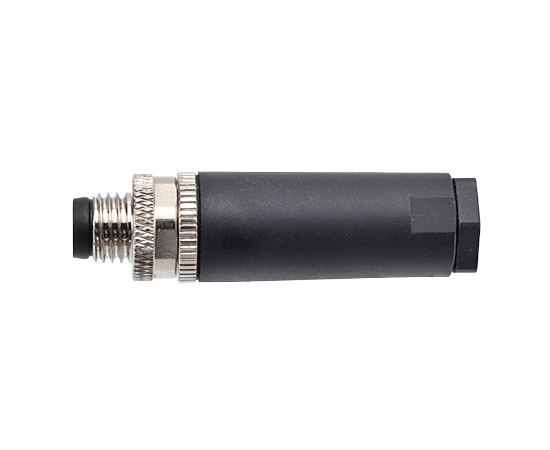

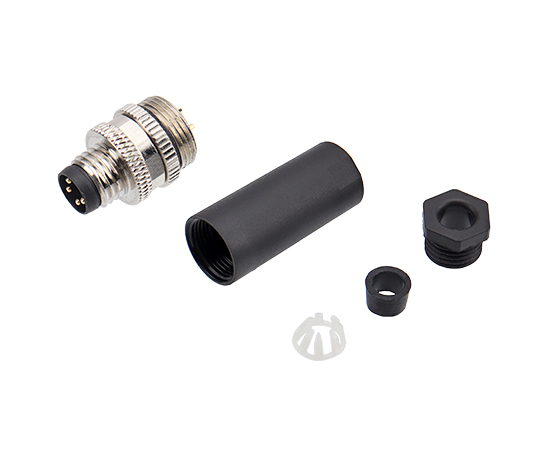

M8 Straight Male Plastic Assembled Plug (Solder)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Executive standard： | IEC 61076-2-104 |
ELECTRICAL PARAMETERS
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M8 Straight Female Plastic Assembled Plug 3A Solder | M8-S3A-PWA-05 | 3A | ↓ | |
| M8 Straight Female Plastic Assembled Plug 4A Solder | M8-S4A-PWA-05 | 4A | ↓ | |
| M8 Straight Female Plastic Assembled Plug 4D Solder | M8-S4D-PWA-05 | 4D | ↓ | |
| M8 Straight Female Plastic Assembled Plug 5B Solder | M8-S5B-PWA-05 | 5B | ↓ | |
| M8 Straight Female Plastic Assembled Plug 6A Solder | M8-S6A-PWA-05 | 6A | ↓ | |
| M8 Straight Female Plastic Assembled Plug 8A Solder | M8-S8A-PWA-05 | 8A | ↓ |
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET

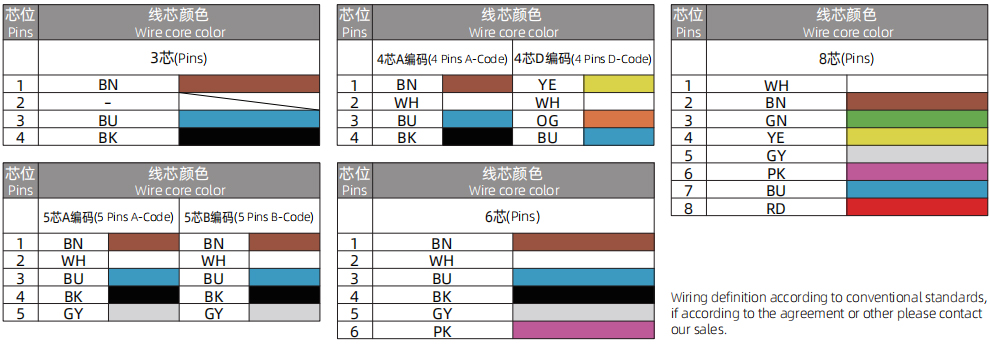

WIRE DEFINITION
