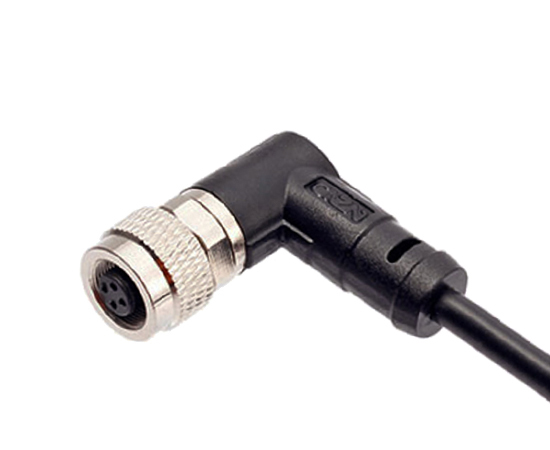

M9 Angled Female Overmolded Plug
MECHANICAL PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤3 mΩ |
| Wiring range： | 3.0~5.0mm |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
M9 ELECTRICAL PARAMETERS
| Product Name | Part No.-Shielded | Part No.-Unshielded | Pins | 3D Download | 2D Download |
| M9 Angled Female Overmolded Plug-2Pin-xxMeters-PVC jacket | M9A-02PDF-GM-xVS | M9A-02PDF-GM-xV | 2 | ||
| M9 Angled Female Overmolded Plug-3Pin-xxMeters-PVC jacket | M9A-03PDF-GM-xVS | M9A-03PDF-GM-xV | 3 | ||
| M9 Angled Female Overmolded Plug-4Pin-xxMeters-PVC jacket | M9A-04PDF-GM-xVS | M9A-04PDF-GM-xV | 4 | ||
| M9 Angled Female Overmolded Plug-5Pin-xxMeters-PVC jacket | M9A-05PDF-GM-xVS | M9A-05PDF-GM-xV | 5 | ||
| M9 Angled Female Overmolded Plug-6Pin-xxMeters-PVC jacket | M9A-06PDF-GM-xVS | M9A-06PDF-GM-xV | 6 | ||
| M9 Angled Female Overmolded Plug-7Pin-xxMeters-PVC jacket | M9A-07PDF-GM-xVS | M9A-07PDF-GM-xV | 7 | ||
| M9 Angled Female Overmolded Plug-8Pin-xxMeters-PVC jacket | M9A-08PDF-GM-xVS | M9A-08PDF-GM-xV | 8 |
*If needing other cable materials please contact our sales.
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET
M9 WIRE DEFINITION
