SM1000-04
BASICPARAMETERS
| Pitch: | 10.0mm |
| Rated voltage-UL: | 300V |
| Rated current-UL: | 66A |
| Rated voltage-IEC: | 1000V(01P) 320V(02-12P) |
| Rated current-IEC: | 76A |
| Wire range-UL: | 20-4AWG |
| Wire range-IEC: | 0.75-16mm² |
| Pole number: | 02~12P |
| Insulation Material: | PA66 UL94 V-0 |
| Material & Plating of Current carrier: | Copper alloy, Tin plated |
| Insulation Resistance: | 500MΩ or more at DC500V |
| Withstanding Voltage(1Min): | - |
| Rated surge voltage: | 6KV |
| Wire clamp unit Screw, torque Max.: | - |
| Material of Clamp spring: | Stainless Steel(GrNi) |
| Wire stripping length: | 18mm |
| Operating temperature: | -40℃ ~ +115℃ |
| Soldering recommend: | Wave soldering, 260℃ 5S Max(Single Wave), 260℃ 10S Max(Double Wave) |
| Approval: |  VDE(Applying) |
| Product Name | Pitch | Pole number | Part No. | 3D Download | 2D Download |
| Fixed Terminal | 10.0mm | 02~12P | SM1000-04 |
| PRODUCT CATALOG | Terminal Selection Manual |

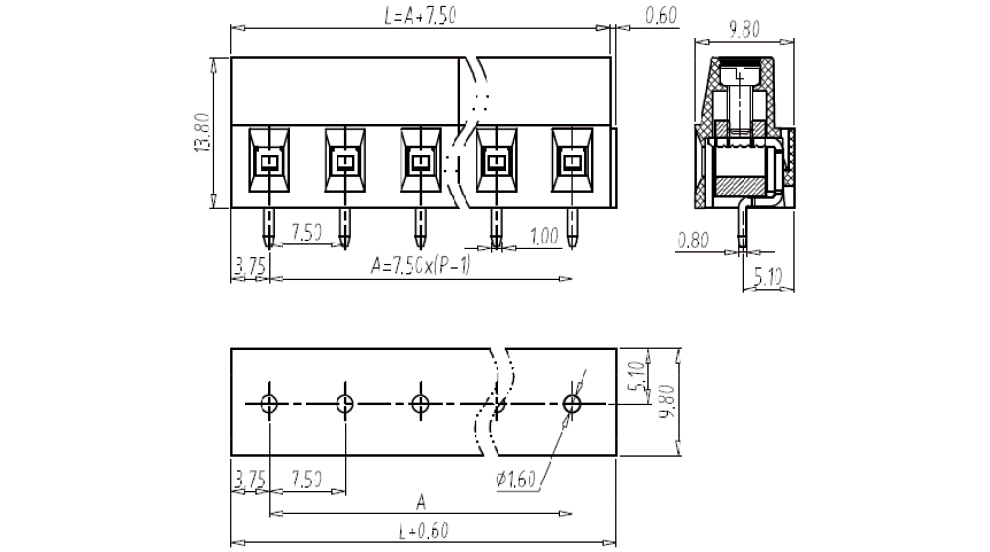

DIMENSION DRAWING
