SPA750-W00（SPA762-W00）
BASICPARAMETERS
| Pitch: | 7.50mm(7.62mm) |
| Rated voltage-UL: | 300V |
| Rated current-UL: | 16A |
| Rated voltage-IEC: | 630V |
| Rated current-IEC: | 20A |
| Wire range-UL: | 30-12AWG |
| Wire range-IEC: | 0.2-2.5mm²sol/str 4mm²sol |
| Pole number: | 02~12P |
| Insulation Material: | PA66 UL94 V-0 |
| Material & Plating of Current carrier: | Copper alloy, Tin plated |
| Insulation Resistance: | 500MΩ or more at DC500V |
| Withstanding Voltage(1Min): | 3000V |
| Rated surge voltage: | 6000V |
| Wire clamp unit Screw, torque Max.: | M3, 0.5N·m |
| Mounting Screw, torque: | M2.5, 0.2-0.25N·m |
| Material of Clamp spring: | - |
| Wire stripping length: | 7.0mm |
| Operating temperature: | -40℃ ~ +115℃ |
| Soldering recommend: | - |
| Approval: |   |
| Product Name | Pitch | Pole number | Part No. | 3D Download | 2D Download |
| Plug-in Terminal | 7.50mm | 02~12P | SPA750-W00 | ||
| Plug-in Terminal | 7.62mm | 02~12P | SPA762-W00 |
| PRODUCT CATALOG | Terminal Selection Manual |

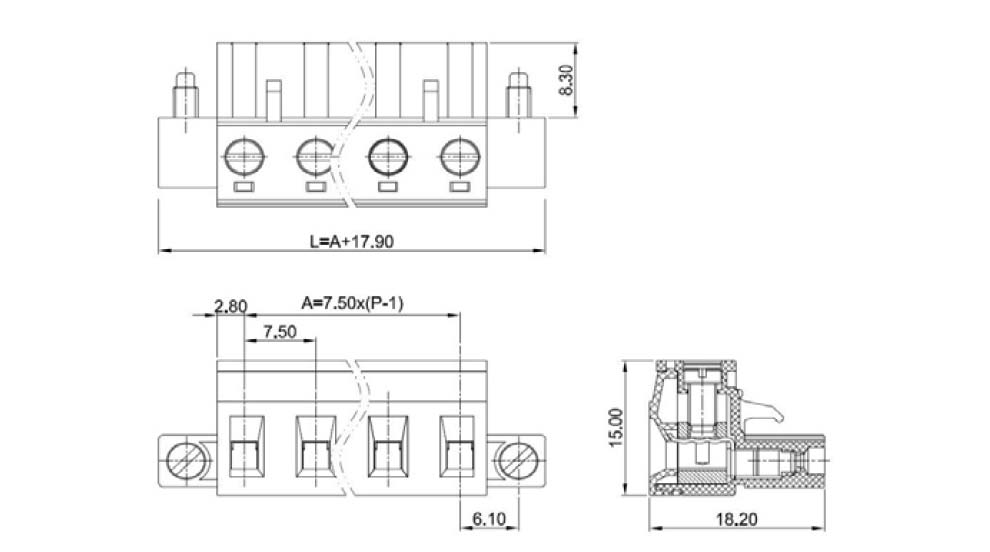

DIMENSION DRAWING
