E7 Dust cover(Thread)
Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Coupling: | Thread (T); Bayonet(B) |
| Applicable temperature: | -40℃ ~ +105℃ |
| Cable diameter: | 4.0mm~8.0mm |
| Waterproof grade: | IP67，IP68 |
| Screw size | 7/16"-28UNS |
| Product Name | Coupling | Installation | Screw | P/N | 3D Download | 2D Download |
| E7 Dust cover | Thread | Round Hole | 7/16"-28UNS | E7T-VP-ST |  | |
| E7 Dust cover | Thread | Latch | 7/16"-28UNS | E7T-VP-PI | | |
| E7 Dust cover | Bayonet | Round Hole | 7/16"-28UNS | E7B-VP-ST | ↓ | |
| E7 Dust cover | Bayonet | Latch | 7/16"-28UNS | E7B-VP-PI | |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

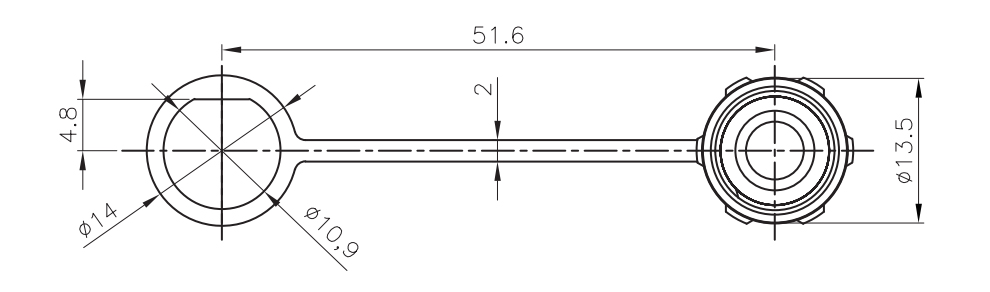

Dimensions
