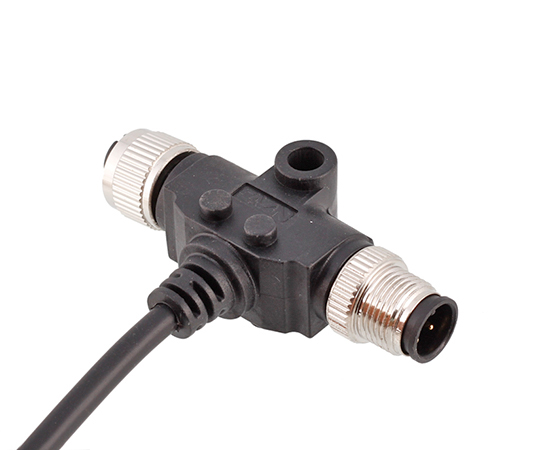

M12 T-Type Cable type (PS)
Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical paramete
| Product Name | Pins | Models | 3D Download | 2D Download |
| M12 T-Type Cable type (PS) | 2A | M12 - P 2A / S 2A - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 3A | M12 - P 3A / S 3A - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 4A | M12 - P 4A / S 4A - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 5A | M12 - P 5A / S 5A - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 6A | M12 - P 6A / S 6A - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 8A | M12 - P 8A / S 8A - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 12A | M12 - P 12A / S 12A - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 17A | M12 - P 17A / S 17A - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 5B | M12 - P 5B / S 5B - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 3C | M12 - P 3C / S 3C - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 4C | M12 - P 4C / S 4C - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 5C | M12 - P 5C / S 5C - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 6C | M12 - P 6C / S 6C - MWT+OPEN - xxPV | ||
| M12 T-Type Cable type (PS) | 4D | M12 - P 4D / S 4D - MWT+OPEN - xxPV |
*If needing other cable materials please contact our sales.
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
Dimension

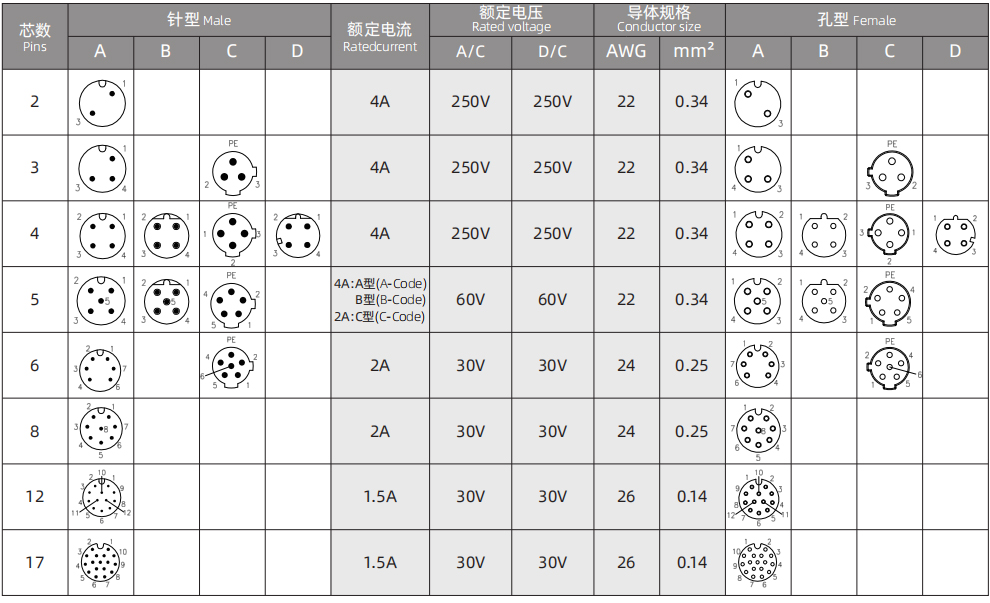

Wiring Definition
