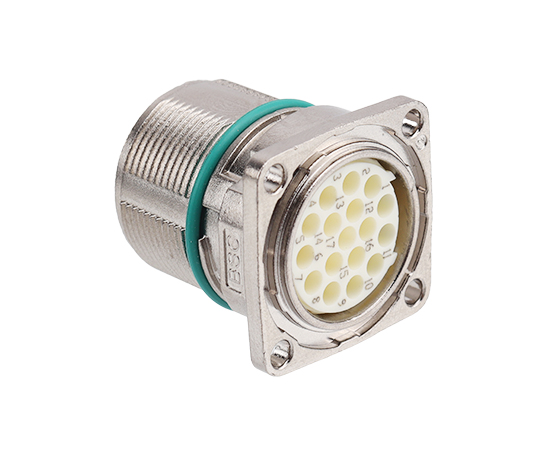

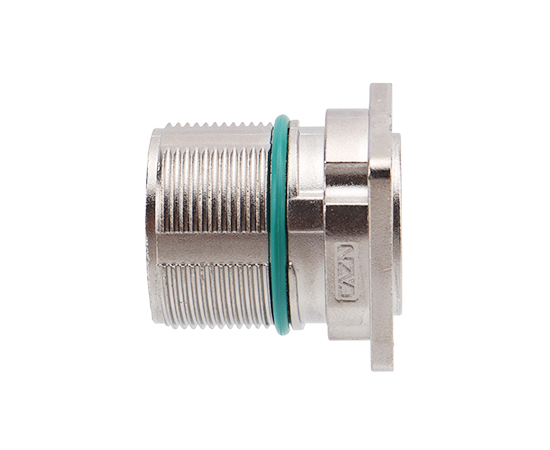

M623 Signal Straight Female Socket (Crimp, Mount hole 19.8x19.8)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel-plated |
| Insulator material： | PBT/PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | 6~10mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +125℃ |
| Waterproof grade： | IP67 |
M623 SIGNAL TYPE ELECTRICAL PARAMETERS
| Product Name | Part No.-(P Code) | Part No.-(E Code) | Pins | 3D Download | 2D Download |
| M623 Signal Straight Female Socket-Crimp-Mount hole 19.8x19.8-6Pin | M623P-06PHF-GC | M623E-06PHF-GC | 6 |
|
|
| M623 Signal Straight Female Socket-Crimp-Mount hole 19.8x19.8-7Pin | M623P-07PHF-GC | M623E-07PHF-GC | 7 |
|
|
| M623 Signal Straight Female Socket-Crimp-Mount hole 19.8x19.8-9Pin | M623P-09PHF-GC | M623E-09PHF-GC | 9 |
|
|
| M623 Signal Straight Female Socket-Crimp-Mount hole 19.8x19.8-8+1Pin | M623P-09XPHF-GC | M623E-09XPHF-GC | 8+1 |
|
|
| M623 Signal Straight Female Socket-Crimp-Mount hole 19.8x19.8-12Pin | M623P-12PHF-GC | M623E-12PHF-GC | 12 |
|
|
| M623 Signal Straight Female Socket-Crimp-Mount hole 19.8x19.8-17Pin | M623P-17PHF-GC | M623E-17PHF-GC | 17 |
|
|
| Product catalog | CAZN-M Series products brochure |
| Certification/Report | EMC Certificate |
| RoHS Report | 查看 View |
| Waterproof test report | 查看 View |
DATASHEET
M623 WIRE DEFINITION
